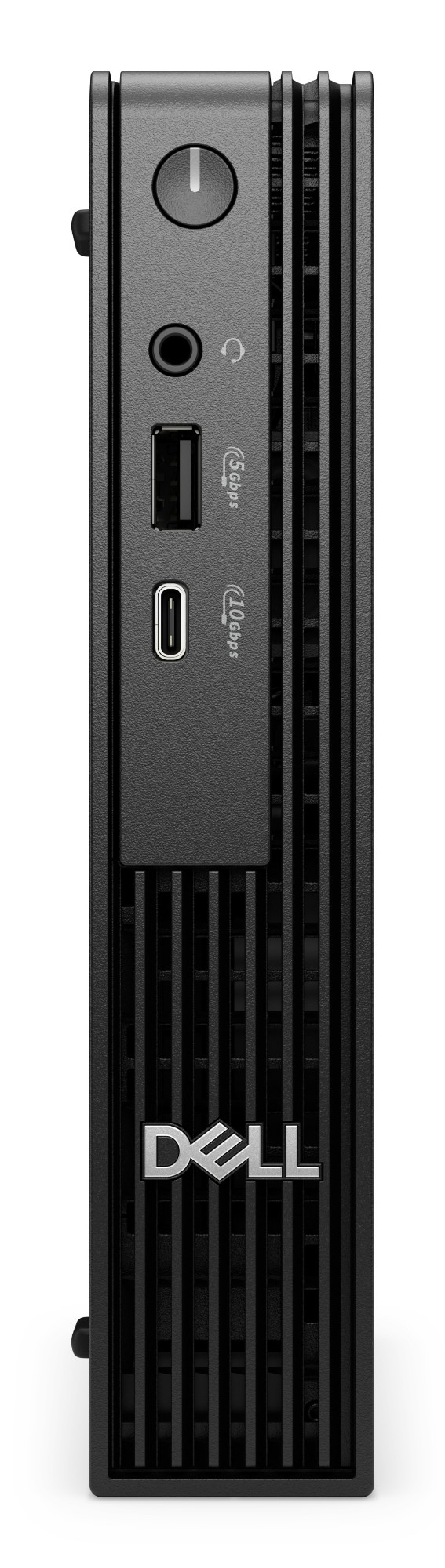

DELL Pro QCM1250 Intel® Core™ i5 i5-14500T 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Micro PC Mini PC Black

£490.05 excl. VAT

DELL Pro QCM1250 Intel® Core™ i5 i5-14500T 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Micro PC Mini PC Black

Product code: 20PN3

DELL Pro QCM1250 Intel® Core™ i5 i5-14500T 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Micro PC Mini PC Black

Product code Alt: 20PN3

Product Description

DELL Pro QCM1250. Processor family: Intel® Core™ i5, Processor model: i5-14500T. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel UHD Graphics 770. Wi-Fi. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 90 W. Chassis type: Micro PC. Product type: Mini PC. Weight: 1.16 kg. Product colour: Black

Specifications

Processor
Processor generation	Intel® Core™ i5 (14th gen)
Processor cache type	Smart Cache
Processor cache	24 MB
Processor model	i5-14500T
Number of processors installed	1
Processor manufacturer	Intel
Processor boost frequency	4.8 GHz
Processor threads	20
Processor cores	14
Processor family	Intel® Core™ i5
Performance cores	6
Efficient cores	8
Performance-core base frequency	1.7 GHz
Efficient-core base frequency	1.2 GHz
Processor base power	35 W
Maximum turbo power	92 W
Efficient-core Max Turbo Frequency	3.4 GHz
Performance-core Max Turbo Frequency	4.8 GHz
Neural processor unit (NPU)
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Memory
Non-ECC	Yes
Memory layout (slots x size)	1 x 16 GB
Internal memory	16 GB
Maximum internal memory	64 GB
Memory slots	2x SO-DIMM
Internal memory type	DDR5-SDRAM
Memory channels	Single-channel
Memory data transfer rate	4800 MT/s
Storage
Storage media	SSD
Number of storage drives installed	1
Optical drive type	No
SSD interface	PCI Express 4.0
SSD capacity	512 GB
Number of SSDs installed	1
Total storage capacity	512 GB
SSD form factor	M.2
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card family	Intel® UHD Graphics
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel UHD Graphics 770
On-board GPU manufacturer	Intel
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
WLAN controller model	Intel Wi-Fi 6E AX211
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
LAN controller	Intel WGI219LM
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Thunderbolt 3 ports quantity	0
HDMI version	2.1
USB 2.0 ports quantity	2
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	1
DC-in jack	Yes
DisplayPort version	1.4a
Number of rear USB ports	4
Number of front USB ports	2
Number of front audio ports	1
Technical details
Cable lock slot type	Kensington
Product type	Mini PC
Trusted Platform Module (TPM)	Yes
Product colour	Black
Chassis type	Micro PC
Audio system	High Definition Audio
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Motherboard chipset	Intel Q870
Sustainability certificates	ENERGY STAR, EPEAT Climate +, EPEAT Gold
Design
Cable lock slot type	Kensington
Product colour	Black
Chassis type	Micro PC
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Intel® vPro™ Platform Eligibility	Yes
Performance
Audio chip	Realtek ALC3204
Market positioning	Business
Product type	Mini PC
Trusted Platform Module (TPM)	Yes
Audio system	High Definition Audio
Motherboard chipset	Intel Q870
Trusted Platform Module (TPM) version	2.0
Software
Operating system architecture	64-bit
Trial software	Activate Your Microsoft 365 For A 30 Day Trial
Operating system installed	Windows 11 Pro
Processor special features
Intel® vPro™ Platform Eligibility	Yes
Power
Power supply input frequency	50 / 60 Hz
Power supply input voltage	100 - 240 V
Power supply	90 W
Operational conditions
Operating altitude	-15.2 - 3048 m
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	10 - 35 °C
Non-operating altitude	-15.2 - 10668 m
Operating vibration	0.26 G
Non-operating vibration	1.37 G
Operating shock	40 G
Non-operating shock	105 G
Sustainability
Sustainability certificates	ENERGY STAR, EPEAT Climate +, EPEAT Gold
Weight & dimensions
Width	36 mm
Depth	178 mm
Height	182 mm
Weight	1.16 kg
Packaging content
Display included	No
Display
Display included	No
Other features
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
Processor manufacturer	Intel
